360° inspection systems use industrial machine vision to analyse components from multiple angles during production processes, ensuring complete surface and feature verification in real time.
By combining synchronized cameras, controlled lighting and intelligent image processing, manufacturers can improve inspection coverage, reduce undetected defects and increase quality control consistency in industrial environments.
The Challenge in Full-Surface Inspection
Many industrial components require complete inspection across multiple surfaces and angles to ensure product quality and assembly reliability.
Traditional inspection methods may fail to detect defects located on hidden or difficult-to-access areas, especially in high-speed production environments. 360° inspection systems help manufacturers achieve full component visibility while improving inspection consistency and operational efficiency.
How the System Works
The 360° inspection system combines multiple industrial cameras, synchronized image acquisition and intelligent analysis software to inspect components from all angles during production.
The process typically includes:
• Components enter the inspection area
• Multiple cameras capture synchronized images around the part
• The system analyses surfaces, dimensions and critical features
• Defects and anomalies are automatically identified
• Components are classified according to predefined quality criteria
Inspection Capabilities
The inspection system can be configured to verify different component characteristics and quality requirements, including:
• Surface defect detection
• Presence and absence verification
• Dimensional inspection
• Shape and positioning analysis
• Assembly verification
• Deformation detection
• Crack and damage inspection
• Multi-angle quality control
Typical Applications
The 360º View Inspection by Sentinel solution enables full inspection of the external surface of circular objects:
Application Benefits
360º vision technology improves quality control reliability without compromising production speed.
Complete Exterior Surface Coverage for Circular Objects
Sentinel’s 360º View Inspection solution enables inspection of the entire exterior surface of circular objects. It is a versatile system that uses cameras and image processing algorithms to inspect 100 percent of the object while it rotates or is observed from multiple angles.

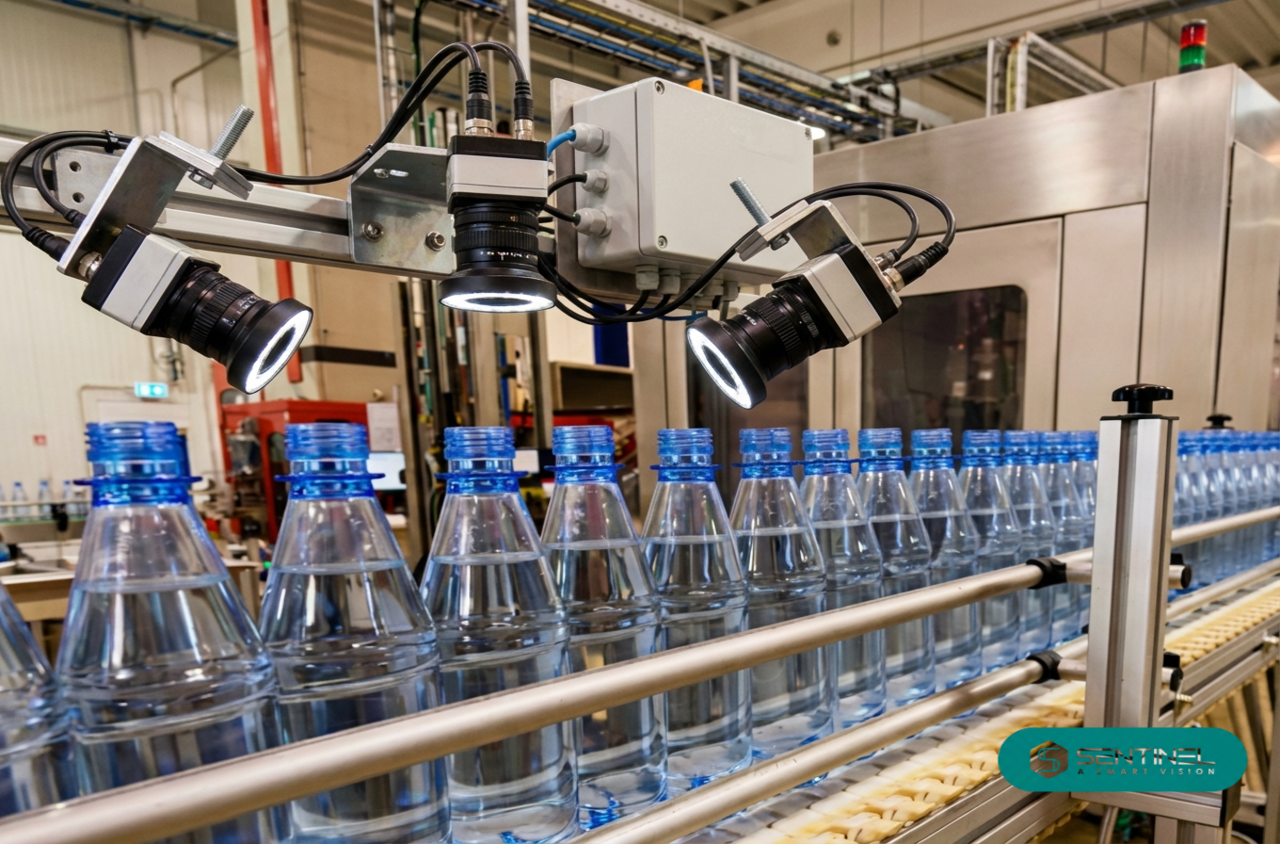

360º High Speed Production Line Inspection
–
This solution uses three cameras positioned at 90º intervals around the object to capture its entire surface as it moves. It enables very fast inspections without interrupting production flow and is ideal for high volume, high speed industrial environments.
d
This solution allows full visualization of the object’s side surface from top to base, ensuring continuous and uniform inspection of the entire surface.
f

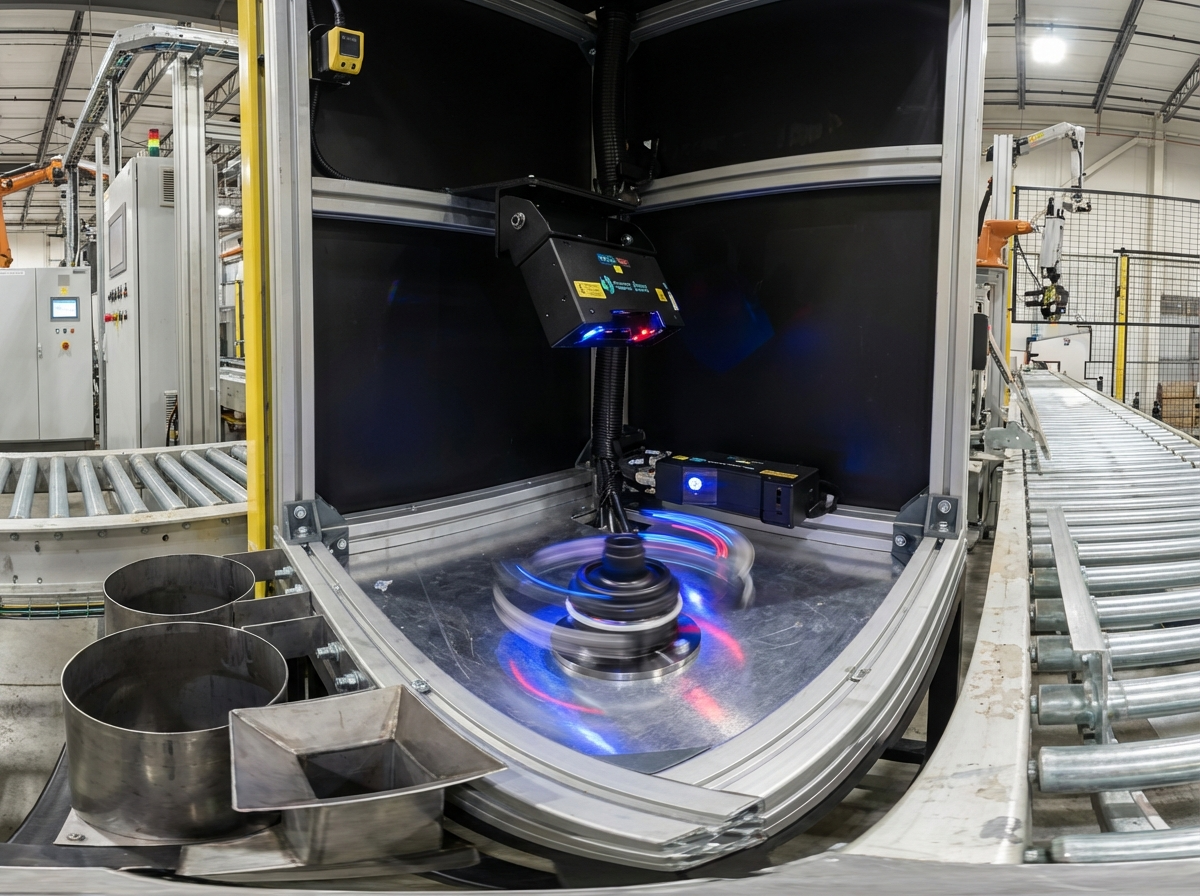

360º Inspection with Part Rotation
This solution combines 360º inspection with advanced image and industrial data analysis systems, enabling detection of micro defects, quality deviations and failure patterns as production runs.
–
Using this information, it is possible to act immediately on recurring issues, optimize process parameters and reduce waste, increasing quality consistency and overall production line efficiency.

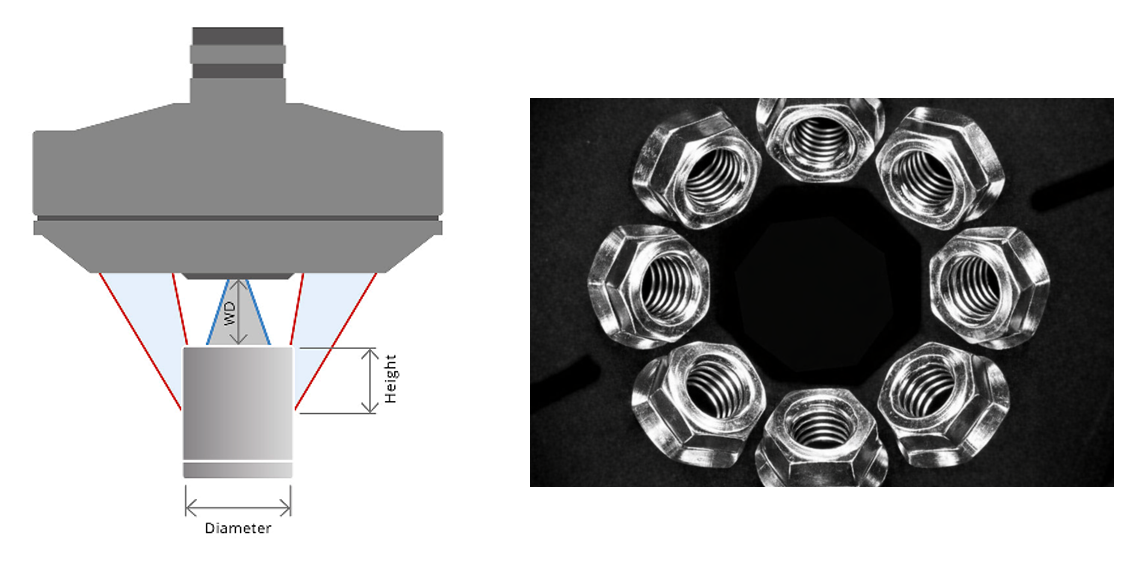

360º Inspection with a Single Camera
This solution uses a 2D camera equipped with a 360º lens to inspect the entire side surface of the object in a single image. It is a simple and cost effective solution, suitable for small objects and inspection areas close to the top. It offers good coverage with lower hardware complexity.
–
Key Benefits
Automated 360° inspection systems help manufacturers improve quality control coverage while reducing the risk of undetected defects in production environments.
Potential benefits include:
• Complete multi-angle inspection coverage
• Improved defect detection consistency
• Reduced manual inspection dependency
• Reduced risk of hidden defects passing inspection
• Faster inspection processes in production lines
• Improved product quality control
• Increased inspection repeatability
