Automated connector inspection systems use industrial machine vision to verify the quality, positioning and integrity of electrical and electronic connectors during production.
By combining high-resolution cameras, controlled lighting and intelligent image processing, manufacturers can detect defects in real time, improve inspection consistency and reduce manual quality control dependency in high-volume production environments.
The Challenge in Connector Inspection
Manual inspection of connectors is prone to human error, limited scalability, and inconsistent results. As production speeds increase, ensuring accuracy becomes more challenging, leading to potential quality issues, product failures, and increased operational costs.
How the System Works
- High-resolution cameras capture connector images in real time
- The system identifies position, orientation and key features
- Advanced algorithms detect defects and anomalies
- Each part is automatically classified (pass/fail)
Defects Detected
- Missing or misaligned pins
- Bent or damaged connectors
- Surface defects and imperfections
- Dimensional inconsistencies
Typical Applications

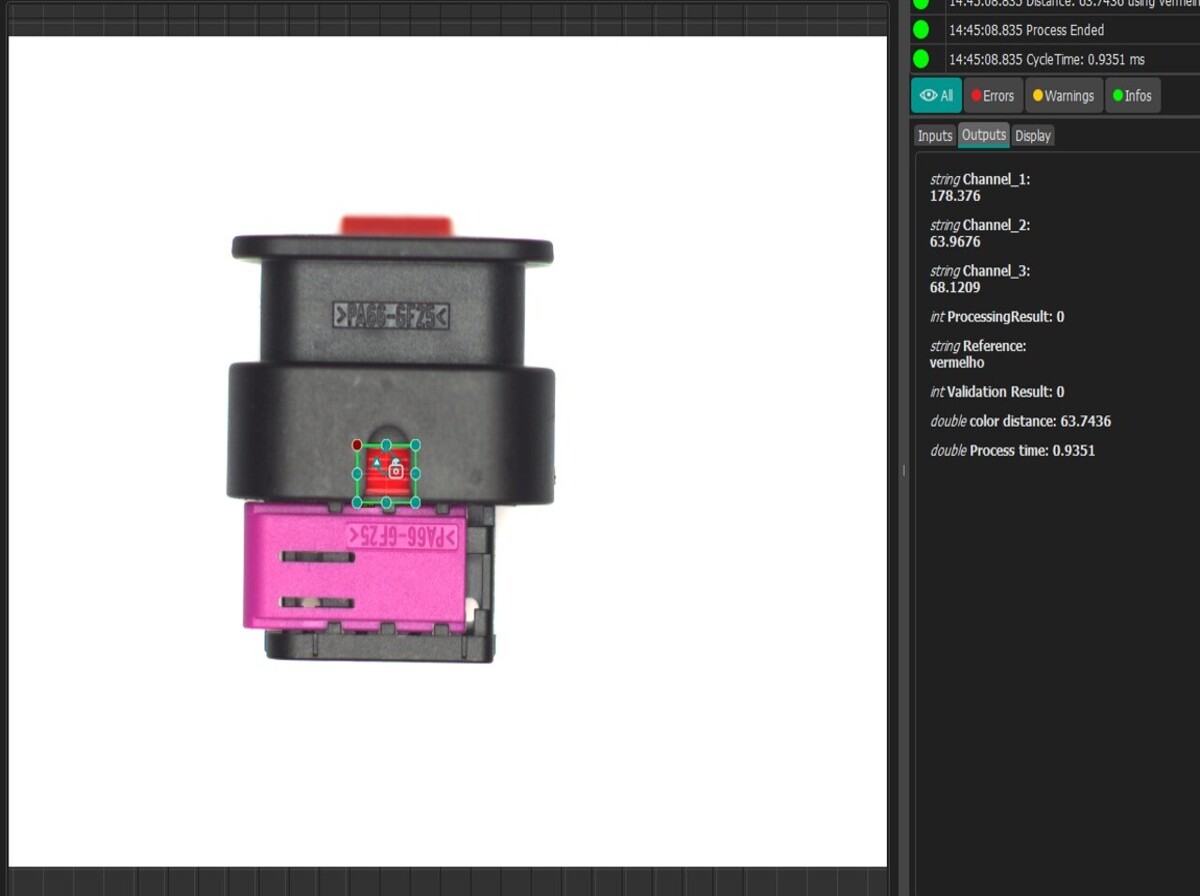

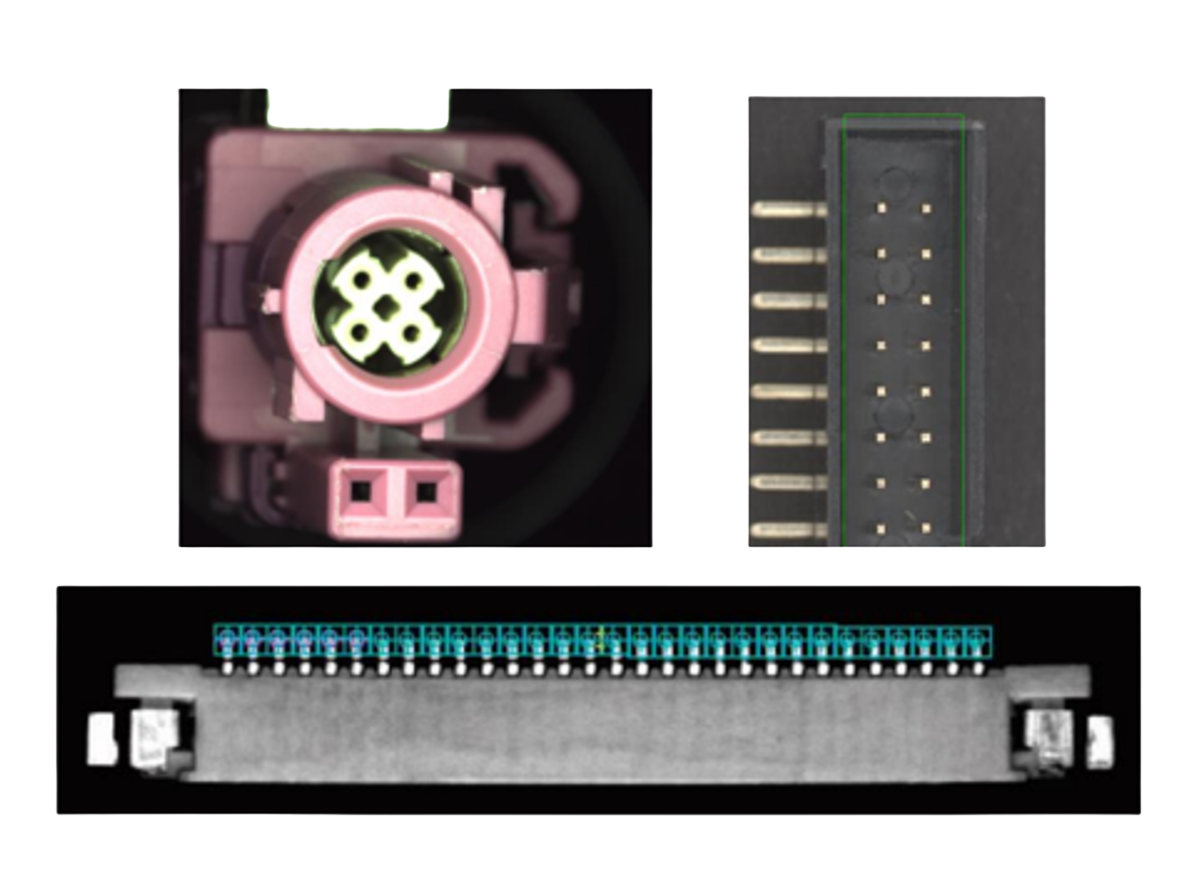

The Connector Inspection solution ensures automatic and rigorous inspection of connectors, guaranteeing dimensional conformity and maintaining high robustness against natural variations in pins and plastic:
Application Benefits
Artificial vision based connector inspection ensures zero defect quality in high precision industrial environments.
Complete Connector Integrity Inspection
SENTINEL’s Connector Inspection solution enables full verification of pins, terminals and housings within a single automated process. It combines high resolution cameras, controlled lighting and intelligent analysis to guarantee mechanical and electrical reliability.
High Speed Inline Inspection
This configuration uses multiple synchronised cameras positioned around the connector to inspect all critical features simultaneously. It enables real time inspections at full line speed, with automatic rejection of defective parts.
d
This solution ensures continuous quality control even on high throughput production lines.
f
3D Inspection of Pins and Terminals
This solution integrates 3D vision to accurately measure pin height, coplanarity and terminal positioning. It is ideal for high density connectors where micrometric deviations cause electrical failures.
–
Through this data, microscopic variations that compromise electrical contact and final product reliability can be identified.
Connector Inspection with Single Camera and AI
This compact solution uses a high resolution camera combined with artificial intelligence to detect defects in a single image. It is a cost effective approach for small connectors or localised inspection areas.
It simplifies integration in limited spaces while maintaining high defect detection accuracy, enabling fast implementation in existing lines without complex mechanical changes or long production interruptions.
s
Key Benefits
Automated connector inspection helps manufacturers improve quality consistency and reduce operational risks in high-volume production environments.
Potential benefits include:
• Reduced manual inspection dependency
• Faster inspection cycles
• Improved defect detection consistency
• Reduced scrap and rework
• Lower risk of assembly failures
• Increased inspection repeatability
